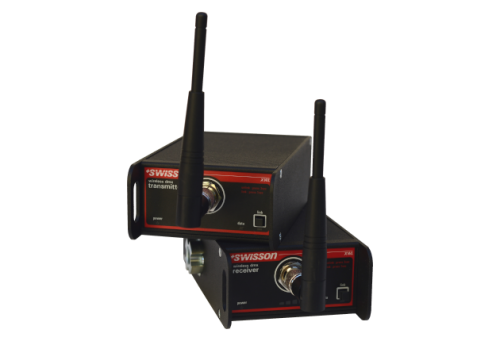

Wireless Transmitter / Wireless Receiver - XWL

    • Wireless DMX receiver (XWL-R models)
    • Wireless DMX transmitter (XWL-T models)
    • M10/M12 threads for truss mount
    • 3/8” thread for mounting on a microphone stand
    • Built-in power supply (powerCON connected)
    • Compact, rugged housing

    With a latency of only about 5 ms, CRMX guarantees a DMX connection with the properties and reliability level equivalent to those of a wired link.

    Several transmitters can be operated in parallel, each of which is easily linkable to any number of receivers and capable of handling one full universe of 512 DMX channels.

    All XWL products are equipped with M10/M12 and 3/8" threads to provide a variety of installation possibilities, such as mounting on a microphone stand.

  • Weight0.58 kg (1.18 lb.)
    Dimensions (L x W x H)164.5 x 92 x 44.4 mm (6.52" x 3.62" x 1.75")
    Ambient temperature-17 to +55°C (0 to +131°F)
    Typical power consumption2 W
    AC power input100-240 V AC
    Transmission power100 mW (20dBm)
    Rangeup to 500 m
    Frequency2.4 GHz
    ModulationGFSK
    Latency< 5 ms
    No. of receivers per transmitterunlimited
    No. of transmitters per venue4-6
    M10 for clamp / safety eyeYes / Yes
    DMXANSI E1.11
  • Designation Article Description Article Number
    XWL-T-CRMX-5CRMX, wireless transmitter, 5-pin XLR10 19 31
    XWL-T-CRMX-3CRMX, wireless transmitter, 3-pin XLR10 19 30
    XWL-R-CRMX-5CRMX, wireless receiver, 5-pin XLR10 19 51
    XWL-R-CRMX-3CRMX, wireless receiver, 3-pin XLR10 19 50
    XAC-ANT-2.4Antenna for XSW / XWL10 90 30
